SPACE STRUCTURES AND MODULAR STRUCTURES
For an introduction to 3D periodic surfaces please have a look here.
Examples from different projects between 1994-1998
Examples from different projects with Prof. Dr. Dres. H.G. von Schnering at the Max Planck Institute for Solid State Research, Stuttgart (1994-1998): 3D Periodic Nodal Surfaces (PNS) and 3D periodic graphes to visually research crystal structures with cubic symmetry and interpenetrating structural components.
I'm preparing my dissertation to be downloaded as an e-publication: "Konstruktion, Analyse und Graphische Darstellung von Interpenetrierenden Netzen in Translationsgittern" 1998, MPI-FKF and University of Stuttgart. |

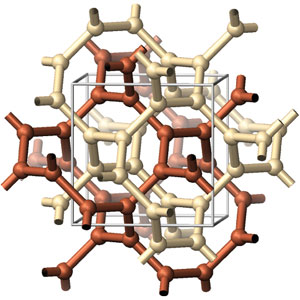

Left: Comuptergenerated visualization of the interpenetrating Y** graph (yellow and brown, position 16b, Ia3d).

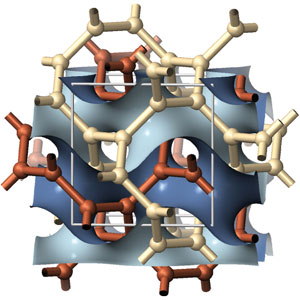

Middle: The two partial graphs +Y* and -Y* with symmetry I4132 are separated by the PNS Y** (an isotope to the gyroide surface).
Visuals: Anke Zürn 1994-1998, "Konstruktion, Analyse und Graphische Darstellung von Interpenetrierenden Netzen in Translationsgittern" 1998, MPI-FKF and University Stuttgart. |
PUBLICATIONS
“Topological Analysis of Mesoporous Solids and Their Ordered Pore Structures by Periodic Nodal Surfaces, PNS”,
A. Zürn and H. G. von Schnering, Z. Anorg. Allg. Chem. 2008, 634, 2761-2764.
“Hyperbolic Cation Diffusion Paths in α-RbAg4I5 Type Superionic Conductors”,
Jen-Hui Chang, Anke Zürn, Hans Georg von Schnering, Z. Anorg. Allg. Chem. 2008, 634, 2156-2160.
“The Intrinsic Shape of the cubic cP124 Clathrate Structure”,
Hans Georg von Schnering, Anke Zürn, Jen-Hui Chang, Michael Baitinger, Yuri Grin
Z. Anorg. Allg. Chem. 2007, 633, 1147_1153.
”Ternäre Nitridoborate. 2. - Darstellung, Kristallstrukturen und Schwingungsspektren neuer ternärer Verbindungen mit dem Anion [N-B-N]3-”,
M. Somer,* U. Herterich, J. Curda, W. Carrillo-Cabrera, A. Zürn, K. Peters, H. G. von Schnering, Z. anorg. allg. Chem., 2000, 626/3, 625-633
"Konstruktion, Analyse und Graphische Darstellung von Interpenetrierenden Netzen in Translationsgittern", PhD Thesis, 1998, MPI-FKF and Univerisity Stuttgart.
|
